China Cisco Catalyst Non-POE Managed Network Switch 24 GigE 4 X 1G SFP IP Lite WS-C2960XR-24TS-I wholesale

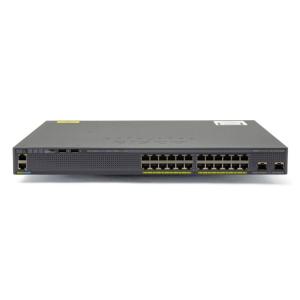

Cisco Catalyst Non-POE Managed Network Switch 24 GigE 4 X 1G SFP IP Lite WS-C2960XR-24TS-I

Name: Cisco Catalyst NonPOE Managed Network Switch 24 GigE 4 X 1G SFP IP Lite WSC2960XR24TSI
Brand: Cisco
Price: 1 USD

Ask Latest Price

Video Channel

Brand Name :Cisco

Model Number :WS-C2960XR-24TS-I

Place of Origin :Beijing,China

MOQ :1 piece

Price :Negotiable

Payment Terms :L/C, T/T, Western Union, MoneyGram

Supply Ability :500 Piece/Pieces per Month

Delivery Time :2-3 working days

Model :WS-C2960XR-24TS-I

Device Type :Switch -24Ports - Managed

Transmission Rate :10/100/1000Mbps

Switch Capacity :216Gbps

Private Mold :NO

Function :LACP, QoS, SNMP, stackable, VLAN Support

Communication Mode :Full-Duplex & Half-Duplex, Full-Duplex & Half-Duplex

Condition :NIB

Warranty :1 Year

Contact Now

Add to Cart

View Product Description

Product Description

Cisco Catalyst 2960XR-24TS-I IP Lite Base layer 2 - 3 stackable switch is comprised of 24 x 10/100/1000 Ethernet ports and 4 x SFP uplink interfaces. Ideal for corporate offices, educational institutions, and smaller branch locations needing reliable and efficient networking solutions.

Specifications

Product	WS-C2960XR-24TS-I
Product Description	2960-XR 24 GigE. 4 x 1G SFP. IP Lite
Qty	4
Type	100Base-TX
Connector Type	Type B
Comments	Management
Rack Mounting Kit	Included
Compliant Standards	AS/NZS 60950-1, BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1 Second Edition, EN 300386, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, FCC CFR47 Part 15, ICES-003 Class A, IEC 60950-1 Second Edition, KN22 Class A, KN24, RoHS, RoHS 2011/65/EU, UL 60950-1 Second Edition, VCCI Class A
Authentication Method	Kerberos, RADIUS, Secure Shell (SSH), TACACS+
MTBF	557,320 hours
Height (Rack Units)	1
Connectivity Technology	Wired
Remote Management Protocol	CLI, HTTP, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2, SNMP 2c, SNMP 3, SSH, Telnet, TFTP
Compliant Standards	IEEE 802.1ab (LLDP), IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ah, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Status Indicators	Link/activity, Port duplex mode, Port status, Port transmission speed, System
Ports Qty	24
Routing Protocol	HSRP, OSPF, OSPFv3, PIM-DM, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, RIPng, VRRP
Stackable	Stackable
Max Units In A Stack	8
Subcategory	Network hubs and switches
Power Over Ethernet (PoE)	No
Advanced Switching	Layer 3
Manageable	Yes
Form Factor	Desktop, Rack-mountable
Jumbo Frame Support	9216 bytes
Forwarding bandwidth(Gbps)	108Gbps
Maximum stacking number	8
Stack Bandwidth	80G
Forwarding Performance	71.4Mpps
Switching bandwidth	216Gbps
Maximum active VLANs	1023
AC Address Table Size	16K (default)
CPU	APM86392 600MHz dual core
RAM	512 MB
Flash Memory	128 MB

Expansion / Connectivity

Console ports	USB (Type-B), Ethernet (RJ-45)
Expansion Slot(s)	1 FlexStack-Plus slot and 1 power redundant slot
Stack Modules	C2960X-STACK
Stacking cable	● CAB-STK-E-0.5M FlexStack-Plus stacking cable with a 0.5 m length ● CAB-STK-E-1M FlexStack-Plus stacking cable with a 1.0 m length ● CAB-STK-E-3M FlexStack-Plus stacking cable with a 3.0 m length
Power supply	PWR-C2-250WAC
Power Device	Power supply - redundant - plug-in module
Power Redundancy	optional
Voltage range (Auto)	110V-240V
Power Consumption Operational	0.038kVA

Comparison of similar items

Models	WS-C2960XR-24TS-I	WS-C2960X-24TS-LL
Ports	24 x 10/100/1000 Ethernet Ports	24 x 10/100/1000 Ethernet Ports
Uplinks	4 x SFP	2 x SFP
Feature Set	IP Lite	LAN Lite
FlexStack-Plus Stacking	Optional	N/A
